Trang chủ » Sản phẩm » Networks » Trendnet » Modems » ADSL Fast Ethernet/USB Combination Modem Router
ADSL Fast Ethernet/USB Combination Modem Router
TDM-C400
Giá chưa bao gồm VAT
Giá bán5.229.000 VND
Giá tham chiếu249 USD
Giá Thị Trường254 USD
Hãng Sản XuấtTrendnet
Bảo hành03 năm
Kho hàngCòn
Thông Tin Tóm Tắt
Connect to the Internet at broadband speeds and create a wired network, all with one product
Works with the latest ADSL standards
Built-in firewall protects against Internet attacks
Control access to your network with MAC Layer and IP Layer filtering
In Báo Giá
Thông tin chi tiết

Hardware
LAN Interface
§                       One 10/100 Base-TX Ethernet port, IEEE 802.3/3u, RJ-45 connector
§                       One USB 1.1 device port, type B connector
WAN Interface
(ADSL line)
§                       One pair (2-wire) loop, 100 Ω line impedance with RJ-11 connector
§                       Compliance: ITU-T G.992.1, G.992.2 and ANSI T1.413 Issue 2 (Annex A)
§                       Compliance: ITU-T G.992.1, G.992.2, G.992.3, G.992.5 & ANSI T1.413 Issue 2

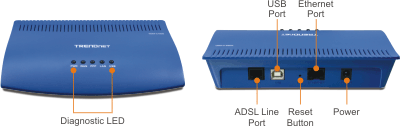

Indicators
§                       USB (green LED) – Continuous ON when USB is active; blinking while transmitting / receiving data
§                       LAN (green LED) – Continuous ON when Ethernet is active; blinking while transmitting / receiving data
§                       PPP (green LED) – Continuous ON when PPP connection is established; blinking while transmitting / receiving data
§                       WAN (green LED) – Continuous ON when ADSL link is up
§                       PWR (green LED) – Continuous ON when power is properly connected
OAM&P
§                       Local: Telnet or Web management via Ethernet
§                       Remote: Telnet or Web Management
Power
§                       AC adapter: Input 110/220VAC, 50/60Hz; Output 15VAC 1A
§                       Power consumption: Less than 6 Watts
Environment
§                       Operation Temperature and Humidity:0°C ~ 45°C,5% ~ 95% (non-condensing)
§                       Storage Temperature and Humidity: -20°C ~ 85°C, 5% ~ 95% (non-condensing)
Dimensions
170 mm ×121 mm× 36 mm (6.7 x 4.8 x 1.4 in)
Weight
255g (9 oz)
Certifications
FCC, CE
Software
ATM
§                       ATM cells over ADSL, AAL5
§                       Supports 8 PVCs
§                       Supports UBR, CBR, rt-VBR, nrt-VBR and GFR traffic classes
§                       ADSL-aware CAC (Connection Admission Control)
§                       Support for F5 AIS, RDI, and loopback cells
§                       Payload encapsulation
§                                     RFC2684 / RFC1483, Multiprotocol Encapsulation over ATM Adaptation Layer 5
§                                     RFC2225 / RFC1577, Classical IP and ARP over ATM (IPoA)
§                                     RFC2364, PPP over AAL5 (PPPoA)
Bridging
§                       RFC2684 / RFC1483 bridged PDU encapsulation
§                       IEEE 802.1D transparent bridging and spanning tree protocol
§                       ZIPB (Zero Installation PPP Bridge)
Routing
§                       RFC2684 / RFC1483 routed PDU encapsulation
§                       Supports Point-to-Point Protocol (including PPPoA and PPPoE) and user authentication via PAP or CHAP
§                       Supports TCP, UDP, ARP, RARP, IPCP, ICMP, IGMP, etc.
§                       IP routing: static route, RIP v1 and v2
§                       NAT/PAT with extensive ALG supports
§                       DNS relay agent
§                       Layer 2 tunneling protocol (L2TP)
Security
§                       Built-in firewall with protection against DOS attacks, IP spoofing, and other common types of attacks
§                       Packet filtering at MAC layer (raw filter) and IP layer, including stateful packet filtering
§                       Supports blacklist
Configuration
and Network Management
§                       TR037-compliant auto-configuration using ILMI
§                       SNMP v1 agent – over IP, ILMI VCC or HDLC/EOC
§                       DHCP client, server and relay for IP management
§                       Universal Plug and Play (UPnP) support
§                       Telnet with CLI (command line interface) or Web-based configuration and management
§                       FTP/TFTP or HTTP for firmware upgrade and configuration



TDM-C400
